Valves of this type should generally be installed horizontally in piping systems.
此类阀门通常应水平安装在管道系统中。

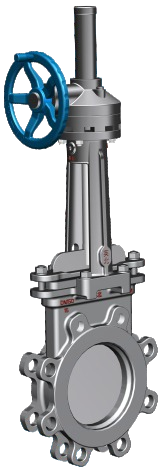

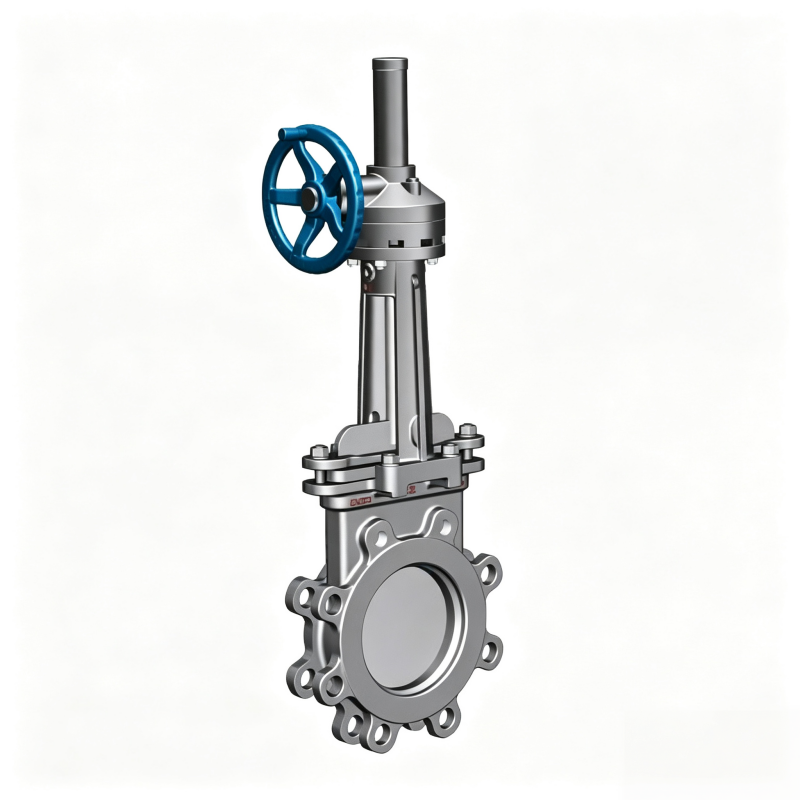

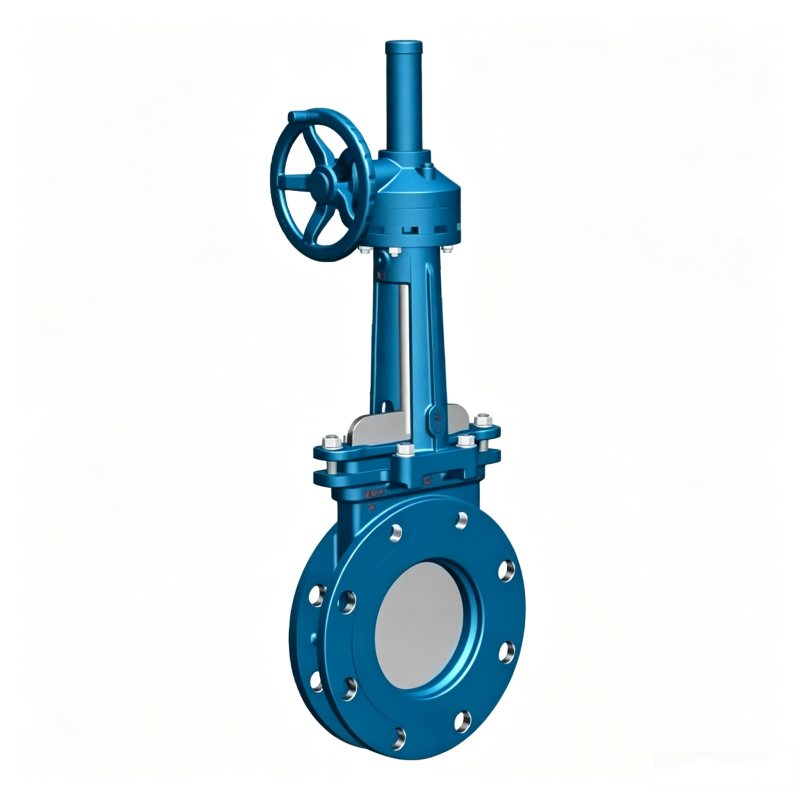

This valve is equipped with a bevel gear drive for easy and flexible operation, and it is commonly used for manual operation on large-diameter or high-pressure pipelines.

该产品为伞齿轮驱动，操作轻松灵活，常用于比较大口径或较高压力场合人工手动操作。

Knife Gate Valve Applicable Media ■刀型闸阀适用介质

Gold ore powder, tailings, mineral sand, furnace slag, coal slime, sandstone, steel ash, paper pulp, wood pulp, cement slurry, fiber, dust, powder, crystal grains, chemical wastewater, slaughterhouse wastewater, municipal sewage, settled oil, asphalt, silo outlets, fruits, grains, beer, beverages, oil products, steam, gas transmission, as well as water supply, drainage and slag discharge in power plants.

刀型闸阀适用介质： 金矿粉、尾矿、矿砂、炉渣、煤泥、沙石、钢灰、纸浆、木浆、水泥浆、纤维、粉尘、粉料、晶粒、化学品处理污水、屠宰厂废水、城市污水、沉淀油、沥青、料仓出口、水果、谷物、啤酒、饮料、油品、蒸汽、气体输送以及电厂给排水、排渣等。

Knife Gate Valve Selection Instructions ■ 刀型闸阀选购说明
1. When placing orders, customers must specify the valve operating conditions, fluid media, working pressure, medium temperature, nominal diameter, valve material and quantity.
2. If customized special requirements are needed, customers shall provide drawing documents and clearly state them in the sales contract. We will manufacture valves strictly in accordance with customer specifications.
3. If no specific brand or model of valve actuator is requested, our standard matched actuator will be equipped on the valve.

1.用户选购时，必须注明阀门的工作条件、流体介质、工作压力、介质温度、公称通径及阀门材质和数量。

2.所需阀门如有特殊要求时，客户必须提供图纸资料且在购售合同中注明、本司按客户要求生产。

3.阀门驱动装置的品牌和型号如无特别要求说明，以本公司标配型号予以装置。

Parameter Range of Knife Gate Valve 刀闸阀参数范围

Design & Manufacturing Standard 设计制造标准: JB/T 8691-1998
Face-to-Face Dimension Standard结构长度标准: GB/T 15188.2-94
Flange Connection Standard法兰连接标准: GB/T 9113.1-2000
