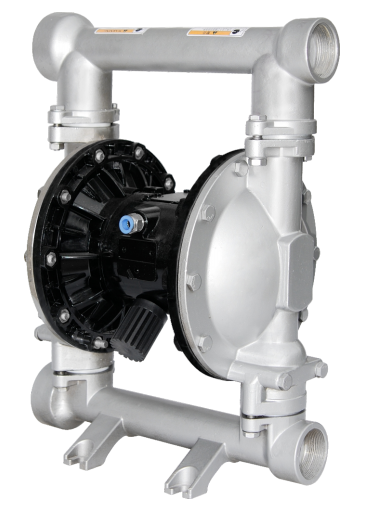

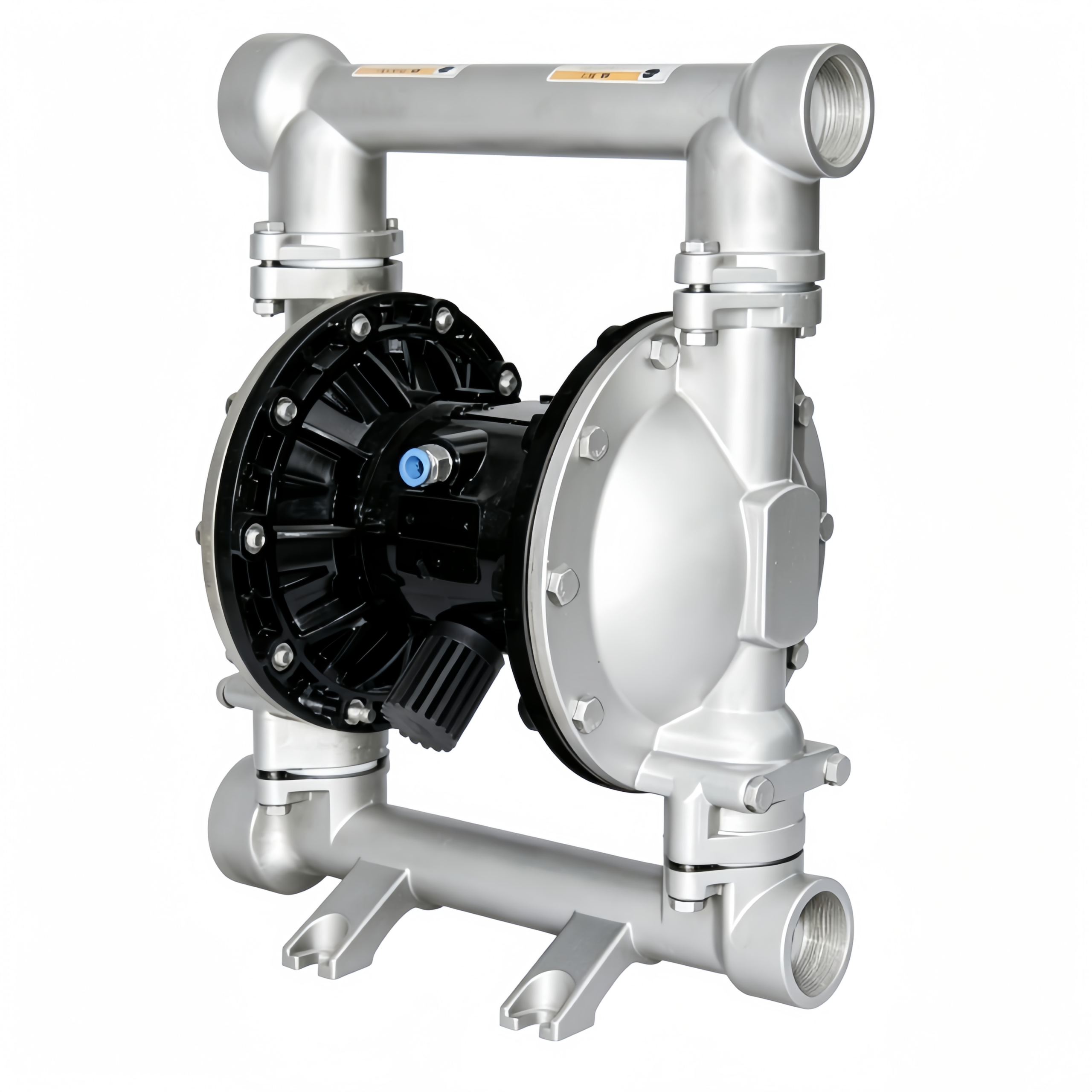

QBY3 Pneumatic Diaphragm Pump
- QBY3
- DN10,DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN100
- Cast Steel(G),Aluminum Alloy(L),PP Plastic(S),304 Stainless Steel(P),316 Stainless Steel(P316),316L Stainless Steel(P316L),PTFE(F),Cast Iron(Z)
- NBR(D),Neoprene(L),PTFE(F),Steel(G),Stainless Steel(P)
- Rubber Seat(J),NBR(D),Neoprene(L),PTFE(F),EPDM(S)
- Rubber Diaphragm(J),NBR Diaphragm(D),Neoprene Diaphragm(L),FKM(V),PTFE(F),EPDM(S),TFM(T),Polyether Diaphragm(M)
- Chemical,Petrochemical,Coatings,Daily Chemical,Ceramics,Mining,Water Treatment,Food,Beverage,Pharmaceutical,Paper,Electronics,Textile,Construction,Automobile,Furniture,Metallurgy Email
1. Overview 概述
QBY3 Series Pneumatic Diaphragm Pumps are driven by compressed air. Suitable for corrosive liquid, particle-containing liquid, high-viscosity, flammable and highly toxic media. Available in 12 sizes with multiple wetted body and diaphragm materials for various working conditions. QBY3系列气动隔膜泵以压缩空气为动力，可输送腐蚀性介质、含颗粒液体、高粘度、易燃、剧毒介质；共 12 种口径，多种泵体与隔膜材质可选，满足不同工况需求。

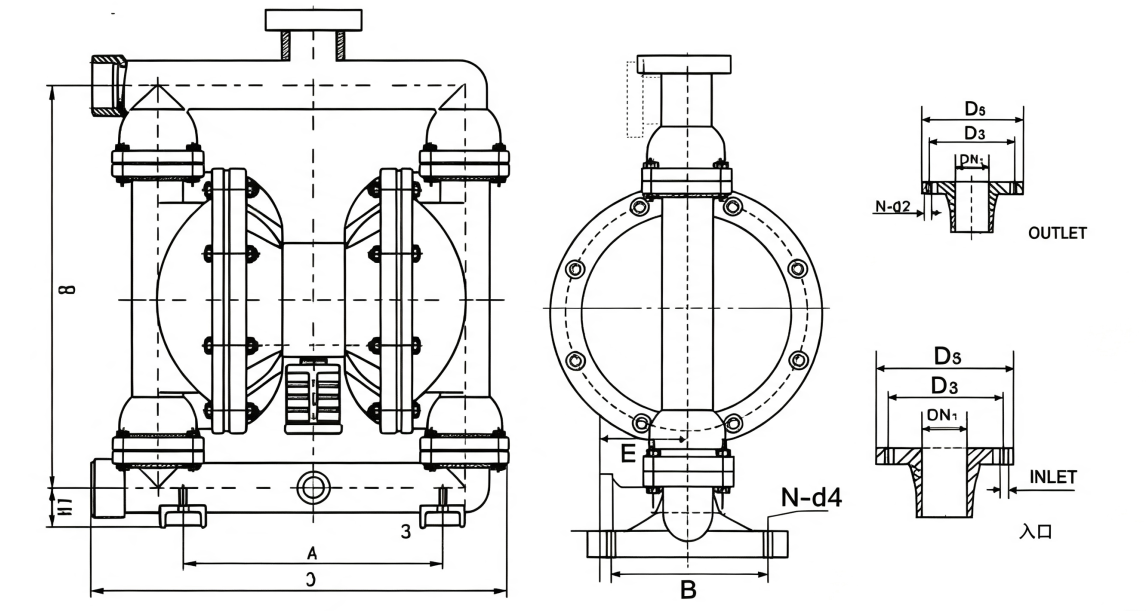

2.QBY3 Installation Dimension Drawing

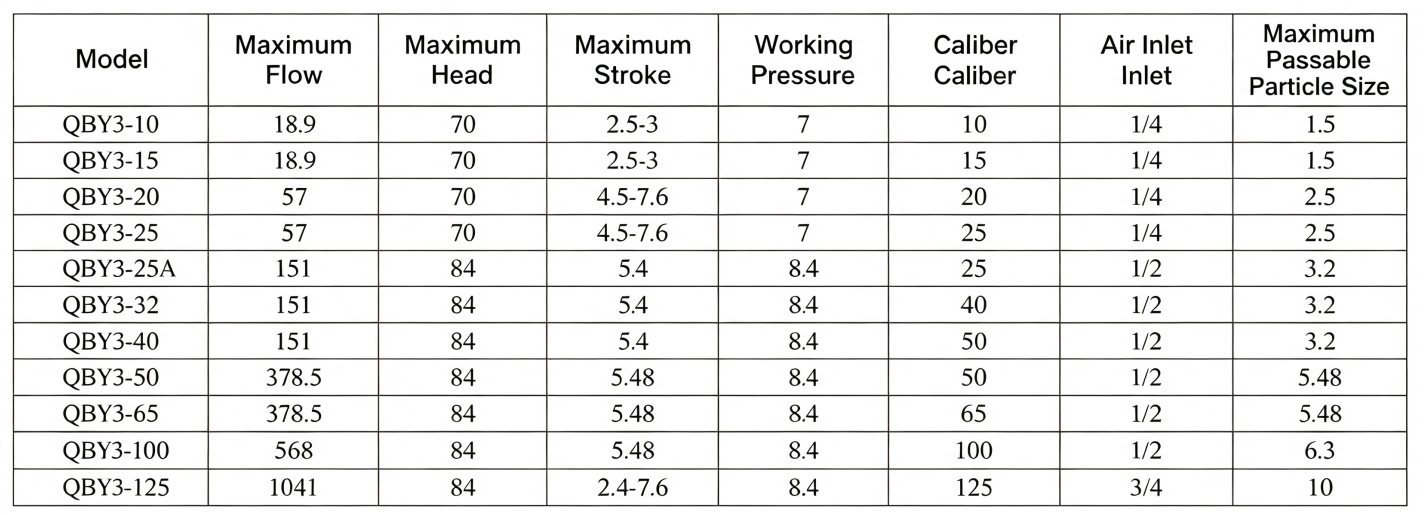

3.QBY3 Performance Parameters
4. QBY3 Structure Diagram
5.System Connection Diagram
Note: Please contact our company for further inquiries.
