1.Overview 概述

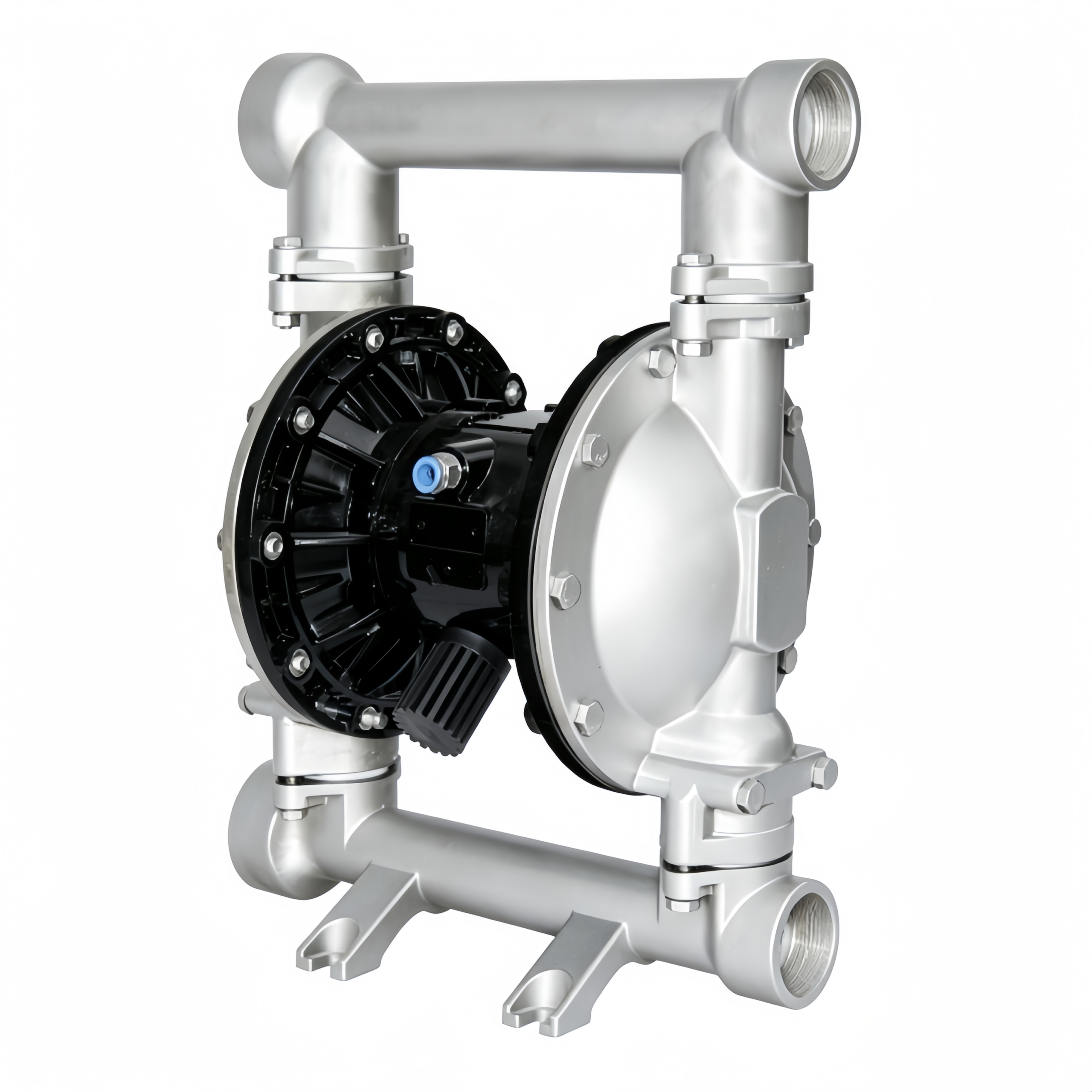

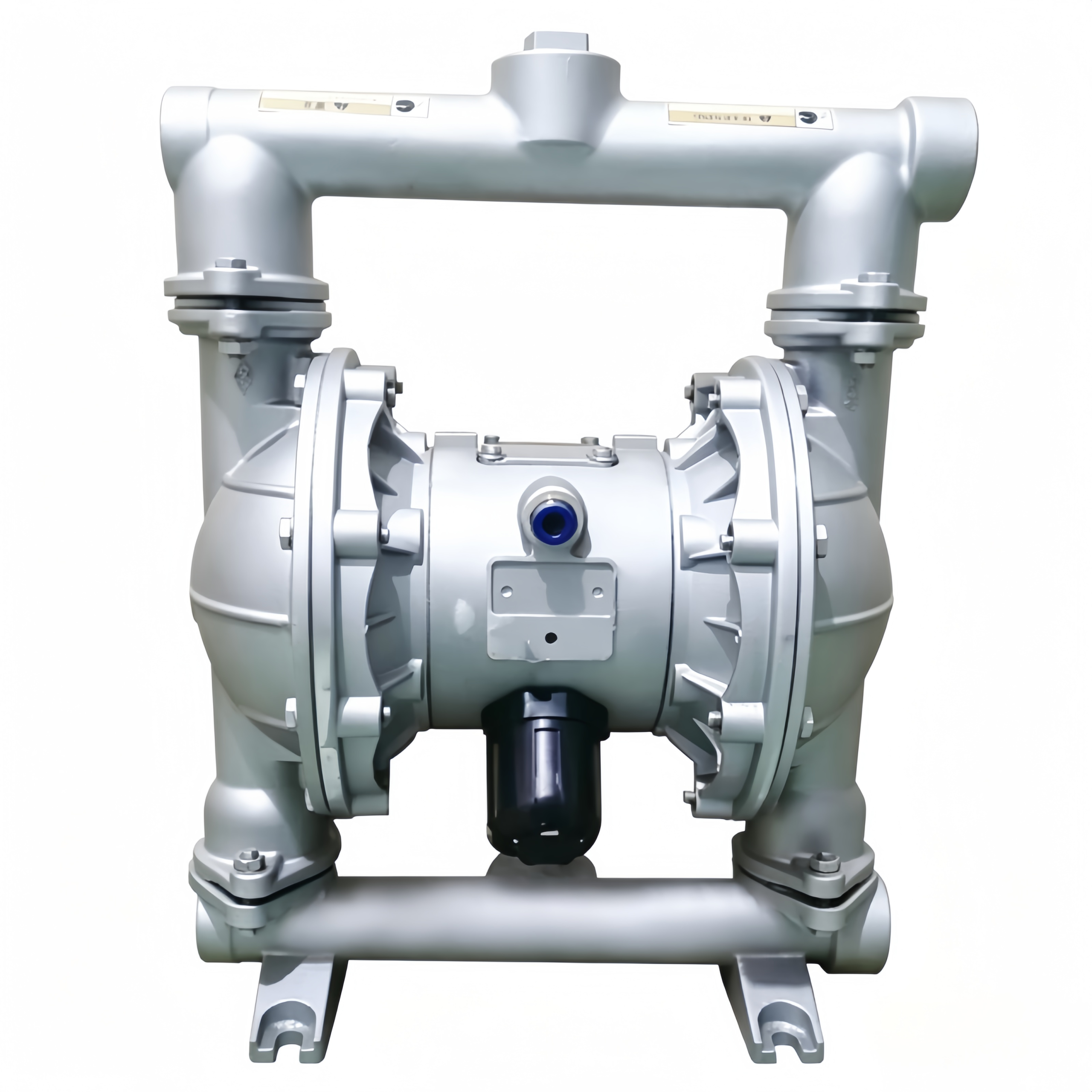

QBK/QBY3 Series Pneumatic Diaphragm Pumps are driven by compressed air. Suitable for corrosive liquid, particle-containing liquid, high-viscosity, flammable and highly toxic media. Available in 12 sizes with multiple wetted body and diaphragm materials for various working conditions.

QBK 系列气动隔膜泵以压缩空气为动力，可输送腐蚀性介质、含颗粒液体、高粘度、易燃、剧毒介质；共 12 种口径，多种泵体与隔膜材质可选，满足不同工况需求。

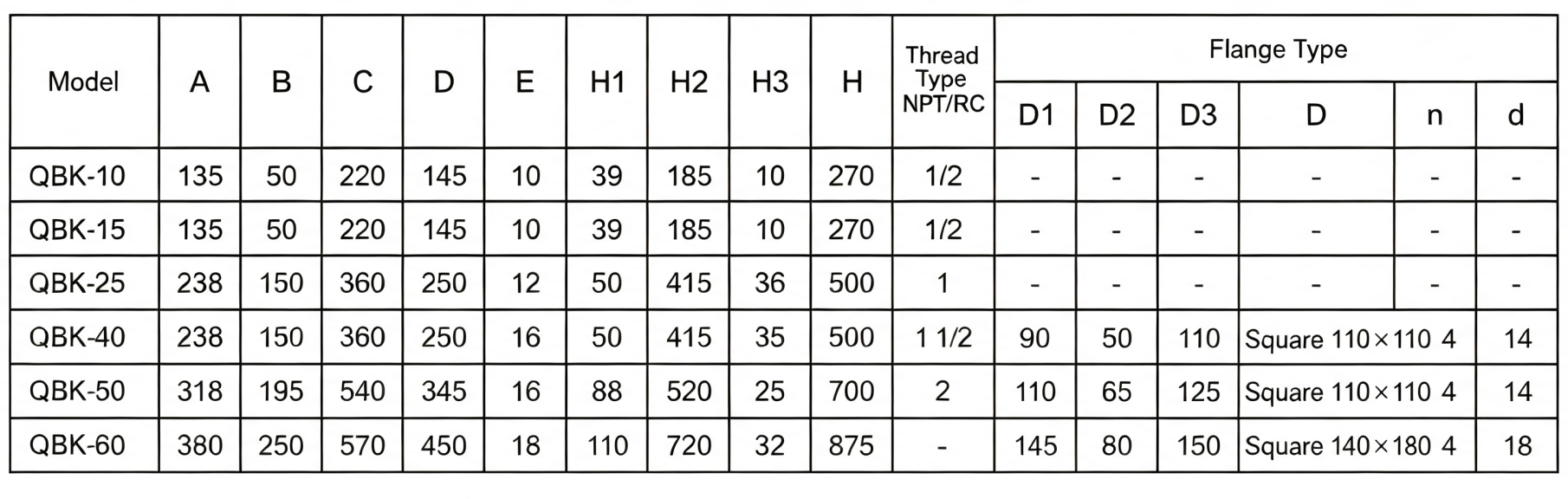

2.QBK Installation Dimension Drawing

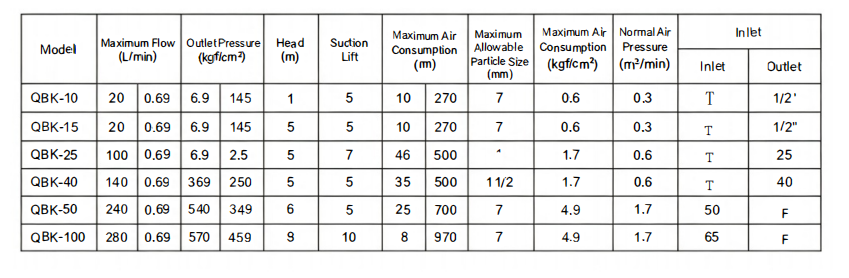

3.QBK Performance Parameters

Note: T means Thread; F means Flange

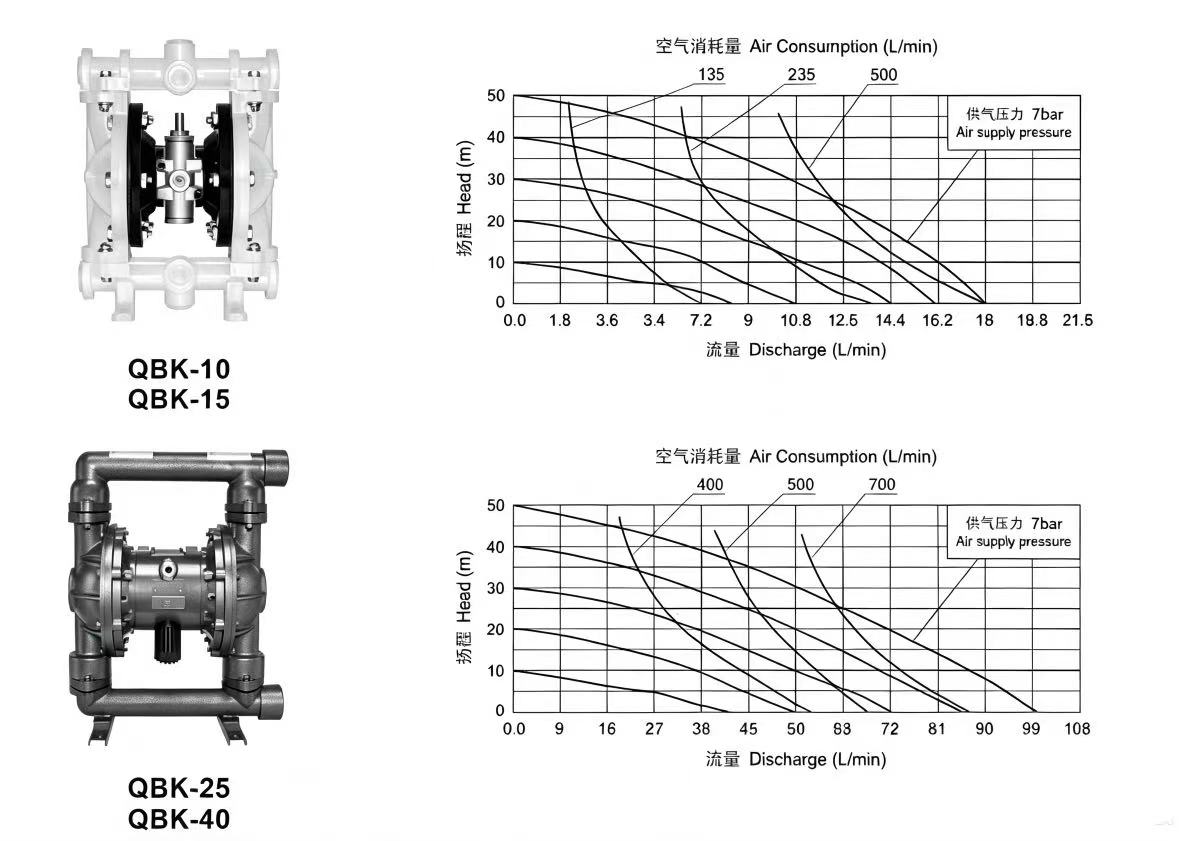

4.QBK Performance Curve Diagram

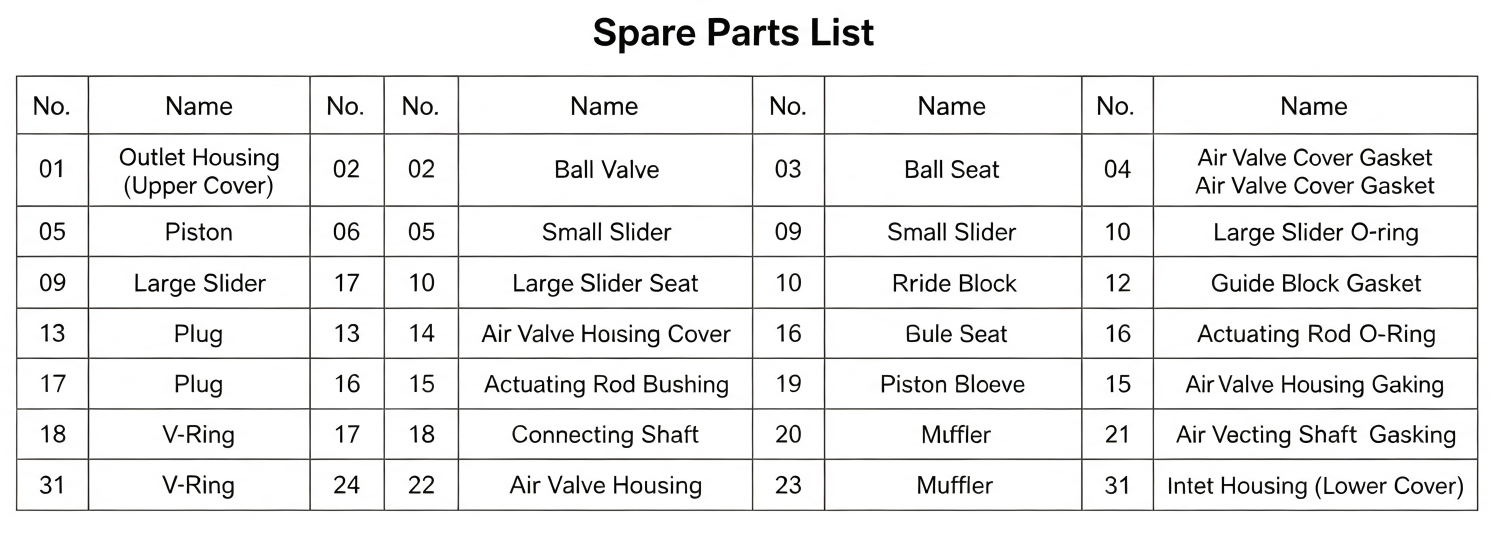

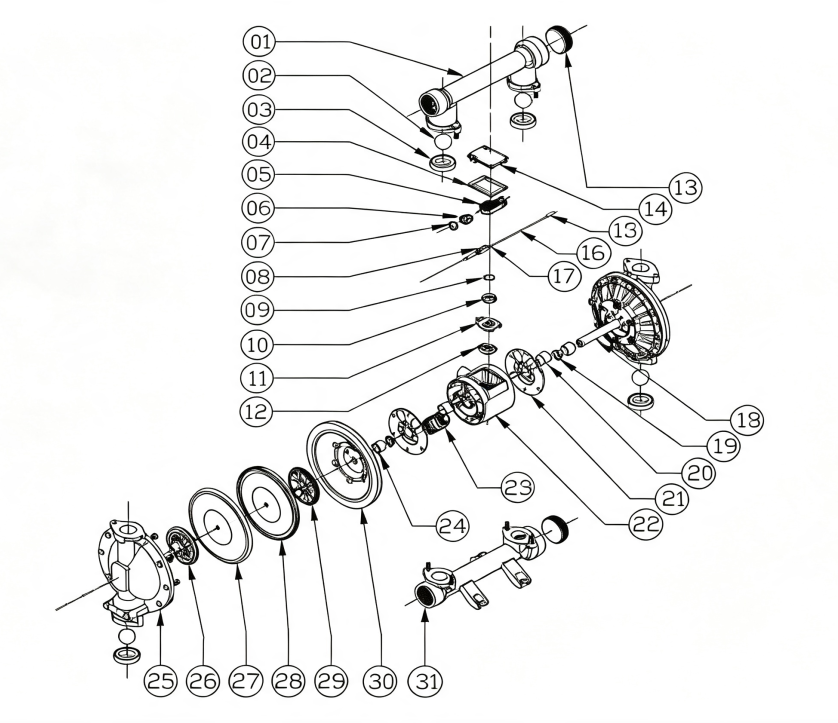

5.QBK Structure Diagram

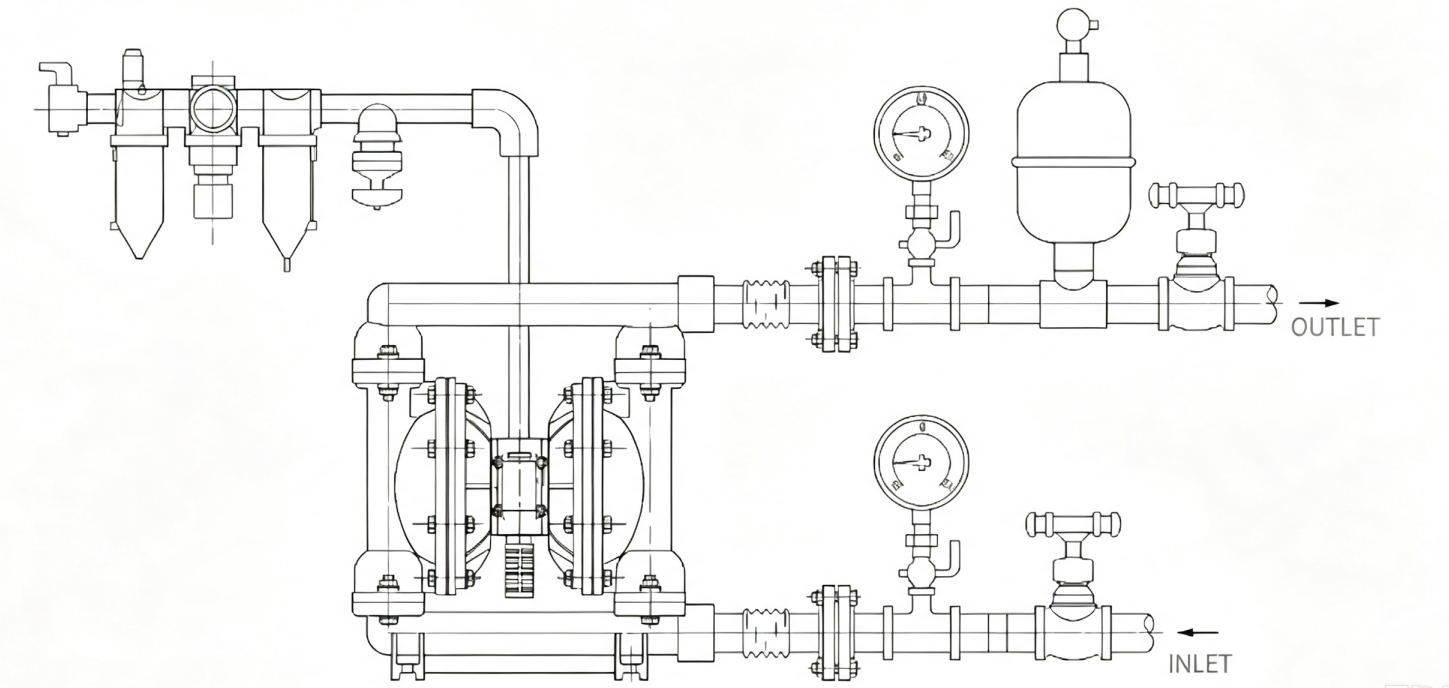

6.System Connection Diagram

Note: Please contact our company for further inquiries.
